    Customized Ac Current Transformer High Precision With 900ma Dc Current

    Ask Lasest Price
    Brand Name : Tiger
    Model Number : TG-4850
    Certification : ISO, CE,UL, RoHS
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100000pcs/day
    Delivery Time : around 20 days
    • Product Details
    • Company Profile

    Customized Ac Current Transformer High Precision With 900ma Dc Current

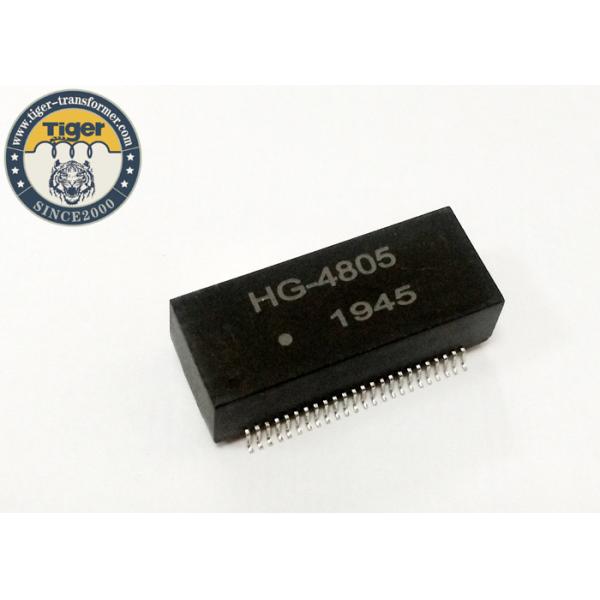

    100/1000 BASE-T POE++ TRANSFORMER Enable with 900mA DC Current



    Key Specifications/Special Features


    1. Compliant with 802.3 at and including 350 uH OCL with 25 mA DC Bias .
    2. The part is POE++ enable with 900mA DC current .
    3. RoHS-6 peak reflow temperature rating 245℃
    4. Operating temperature rang is-40℃ TO +85℃.
    5. Storage temperature rang is -25℃~+125℃

    ELECTRICAL SPECIFICATIONS @25℃

    OCL : 350 uH Min. @100KHz, 100mV with 25 mA DC Bias

    Turn ratio: 1CT:1CT±5% @ 100 KHz, 100mV

    Primary DCR : 0.9 Ω Max

    L.K. : 0.5uH Max. @100KHz,0.1V

    Isolation HI-POT: 1500VAC 1mA 2Second

    Insertion Loss : -1.0dBMax. @1-100MHz

    Return Loss : -18.0dB Min @1-30 MHz

    -16.0dB Min @30-60 MHz

    -12.0dB Min @60-80 MHz

    -10.0dB Min @80-100 MHz

    Crosstalk : -30.0dB Min @1-100MHz2.9

    CMRR : -30.0dB Min. @1-100MHz


    Dimension



    Application

    TIGER designs and manufactures a wide range of products for critical applications in various industries, including but not limited to,
    · Automotive
    · Consumer Electronics
    · Industrial
    · Medical
    · Military & Aerospace
    · Telecommunications
    We are uniquely positioned to offer the highest quality products for critical applications as well as cost effective products for price sensitive applications.
    FAQ
    1. Q: Can I get some samples?
    A: Yes, sample order is available for quality check and market test.
    2. Q: What's the delivery time?
    A: Sample order needs 10 days. Formal order needs around 20 days.
    3. Q: What's your payment terms?
    A: We usually accept T/T at sight as the main payment terms, and other payment can also be negotiated.
    4. Q: Do you have the prodcts in stock?
    A: Yes,we will keep some general ones in stock.
    5. Q: Can I mix different models in one container?
    A: Yes, different models can be mixed up.
