| Brand Name : | Tiger |
| Model Number : | TG-TI014 |
| Certification : | ISO, CE,UL, RoHS |
| Price : | negotiation |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 10000pcs/day |
| Delivery Time : | around 20 days |

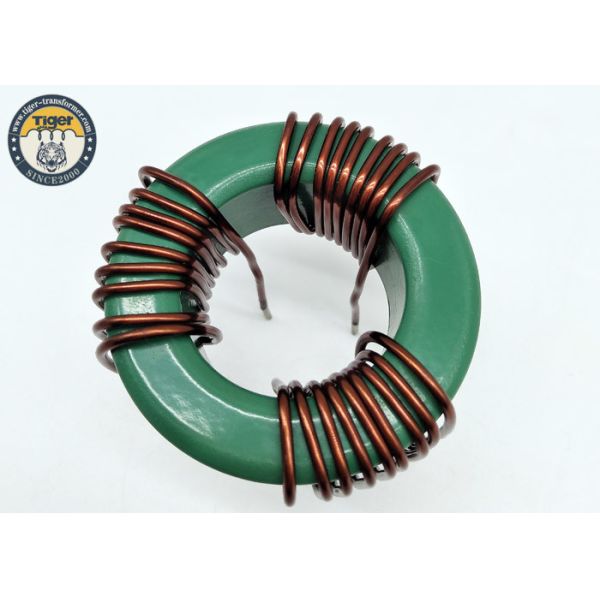

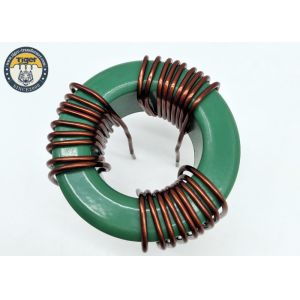

Low Cost Custom Ferrite Core Winding Coil Choke Can Use For
Automatic Patch Machine
Features:
Specifaction :
| Inductance | optional | Size | customized |
| DCR | customized | Material | pure copper |
| Test Condition | 100KHZ | Packing | reel + carton box |
| Saturation Current | customized | Temp | -45 ~ 105℃ |
| Working Temp | -40 ~ 105 ℃ |
| External Apperance | No External deffects can be found in the visual inspection |
| Intensity of Terminal | wire this terminal to baseplate, put 5N to X,Y,Z, no electrode stripping and break line |
| Insulation Resistance | put 100V voltage on the coil and magnetic core, insulation resistance over 100 |
| Withstand Voltage | put 100V on the coil and magnetic core for 1 minute, no any damage |
| Feature of Temp | coefficient of inductor temp (0 ~ 2000)*10-6/°C(-25~+85°C) |
| Withstand Humidity | put our inductor to a environment with 40℃, 90~95% relative humidity for 96 hours. then wipe it with dry cloth, put it in the normal temp for a hour, the change rate is +- 10%  |
| High Temp Storage Test | put it in the +105°C for 96 hours, then put it in normal temp for a hour, change rate is ± 10%  |
| Low Temp Storage Test | put it in the -40°C for 96 hours, then put it in normal temp for a hour, change rate is ± 10% |





                             |
