| Brand Name : | TIGER |
| Model Number : | PCT701 |
| Certification : | ISO, CE,UL, RoHS |
| Price : | negotiation |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 10000 PCS/Day |
| Delivery Time : | 15-20 Working days |

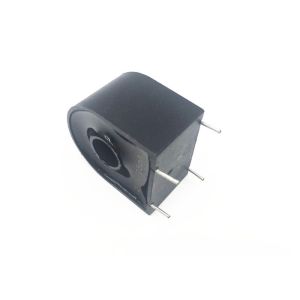

Switching Type High Precision Mini D Model PCT701 Current Transformer
Features:
• Meet the standard of IEC62053 and ANSI12.20
• High linearity with DC immunity characteristics
• Outstanding stability ,separate the external magnetic field interference
• Operation Frequency:20--400Hz
• High potential voltage 4000V/min
• Meet ROHS requirements.
• Suitable for Energy meter ,power transducer ,precision power meter and energy monitoring devices.
• Over current protection circuit of moter and other electrical appliances.
Specifaction :

| Part No | Rated current | Rated resistor | Ratio | 5A Linearity error | 20A linearity error | Max current linearity error | Accuracy class |
| PCT701 | 5~80A | 10Ω | 1000:1 | 20′ | 12′ | 10′ | 0.5 |
| 50Ω | 2500:1 | 15′ | 8′ | 5′ | 0.1 | ||
| PCT702 | 5~100A | 10Ω | 1000:1 | 20′ | 10′ | 9′ | 0.2 |
| 50Ω | 2500:1 | 15′ | 6′ | 5′ | 0.1 | ||
| PCT703 | 5~150A | 10Ω | 1000:1 | 20′ | 8′ | 7′ | 0.2 |
| 50Ω | 2500:1 | 15′ | 5′ | 5′ | 0.1 | ||
| PCT704 | 5~70A | 10Ω | 1000:1 | 20′ | 15′ | 10′ | 0.2 |
| 50Ω | 2500:1 | 15′ | 10′ | 5′ | 0.1 | ||
| PCT901 | 10~200A | 10Ω | 1000:1 | 20′ | 12′ | 10′ | 0.2 |
| 50Ω | 2500:1 | 15′ | 8′ | 5′ | 0.1 | ||
| PCT506 | 3~20A | 10Ω | 1000:1 | 50′ | 30′ | 20′ | 0.5 |
| 20Ω | 2000:1 | 20′ | 12′ | 10′ | 0.2 | ||
| PCT507 | 3~10A | 10Ω | 1000:1 | 60′ | 40′ | 30′ | 0.5 |
| 20Ω | 2000:1 | 30′ | 20′ | 20′ | 0.5 |



|
